How can I compare the battery capacity parameters of different Lithium Battery Packs?

At Junda Battery, we frequently see clients struggle with spec sheets that promise high performance but fail in the field. Misunderstanding capacity ratings can lead to costly project delays and reliability issues.

To compare lithium battery pack capacity effectively, you must look beyond the nominal Ampere-hour (Ah) rating. Calculate the total energy in Watt-hours (Wh), analyze the discharge C-rate curves, and verify the specific cutoff voltage used during testing to ensure the data matches your real-world application requirements.

Let’s break down the technical details so you can make an informed decision for your next project.

How do I interpret ampere-hour (Ah) ratings across suppliers?

Our engineering team often warns clients that a simple number on a label rarely tells the full story of performance. Without context, a high Ah rating can be misleading.

Interpreting Ah ratings requires identifying the specific discharge conditions used by the supplier. A 20Ah rating is only valid if you know the discharge current, temperature, and voltage cutoff points, as these variables can significantly alter the actual deliverable energy compared to the theoretical maximum.

When you look at a datasheet, the Ampere-hour (Ah) figure is usually the first thing that catches your eye. However, this number is often a "nominal" value based on ideal laboratory conditions that your equipment may never replicate. To truly compare suppliers, you need to dig deeper into how they derived that number.

Nominal vs. Rated Capacity

There is a distinct difference between nominal capacity¹ and rated (or minimum) capacity. Nominal capacity is often a theoretical maximum based on the chemistry of the cells. For example, a supplier might list a pack as 20Ah because it uses cells that can hold that much charge under a very slow discharge rate (like 0.2C). However, the rated capacity² is what the manufacturer guarantees the battery will deliver under standard conditions. In our production line, we often find that "bargain" suppliers list the nominal capacity, while high-quality manufacturers list the rated minimum to ensure reliability.

The Voltage Factor

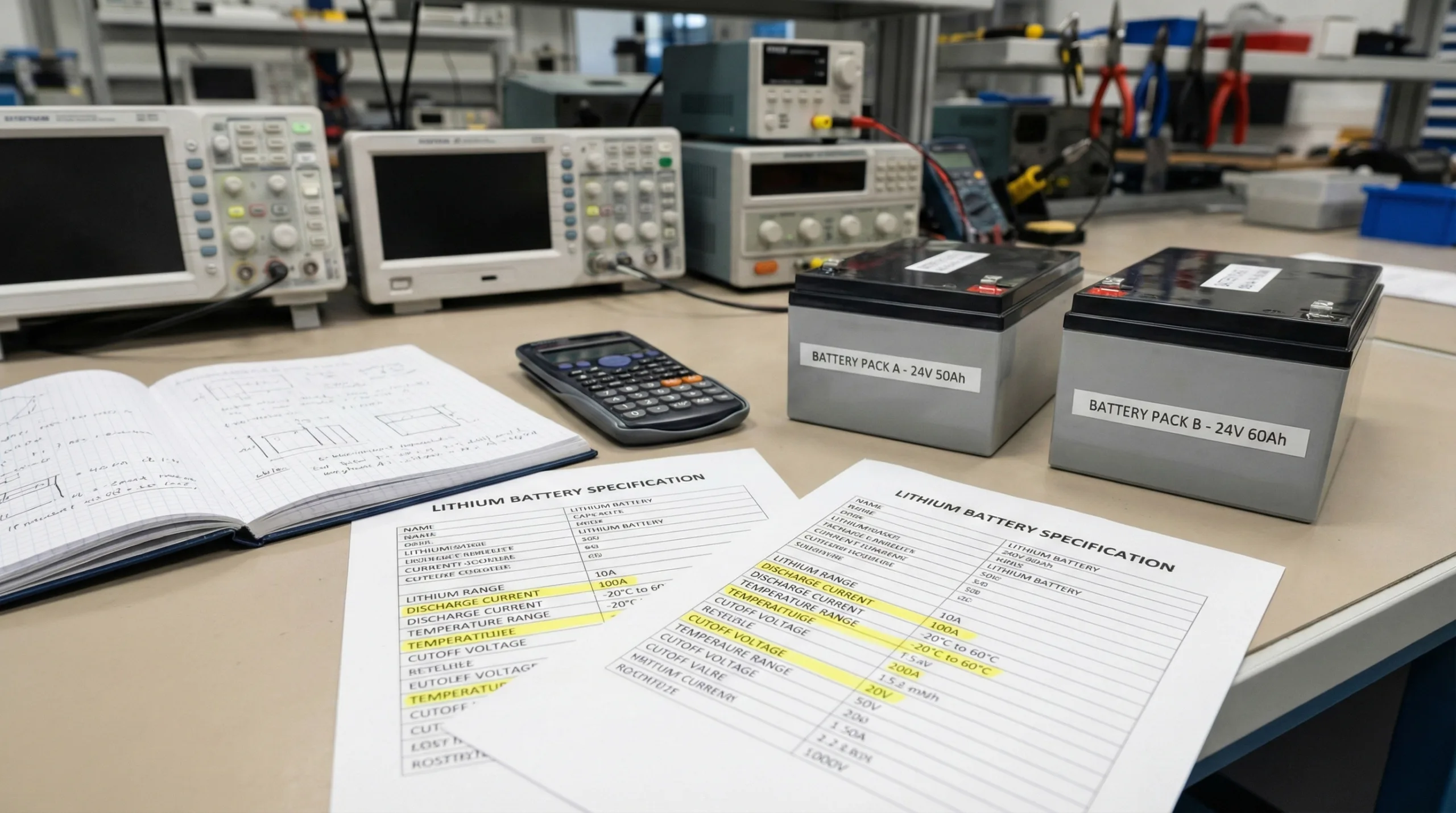

Comparing Ah ratings directly can be dangerous if the voltages are different. A 12V 100Ah battery and a 24V 50Ah battery have the same total energy (1200 Watt-hours), but the Ah numbers look completely different. To make a fair comparison, you should always convert capacity into Watt-hours (Wh)³.

Formula:
$$ \text{Watt-hours (Wh)³} = \text{Nominal Voltage (V)} \times \text{Ampere-hours (Ah)} $$

This conversion levels the playing field, especially when comparing packs with different series/parallel configurations.

Chemistry Matters

Different lithium chemistries have different nominal voltages, which affects the total energy calculation. A Lithium Iron Phosphate (LiFePO4)⁴ cell has a nominal voltage of 3.2V, while a Nickel Manganese Cobalt (NMC)⁵ cell sits at 3.6V or 3.7V. If you build a "48V" pack, the number of cells in series will differ, and so will the resulting capacity profile.

Comparative Analysis of Chemistry and Voltage

When you see a supplier claiming a high Ah rating, ask for the "energy density" and the "nominal voltage." If the numbers seem too good to be true for the specific chemistry they are using, they might be inflating the specs or using a non-standard voltage range for their testing.

What factors affect the usable capacity of a battery pack?

When we design custom packs for industrial robotics, we know that lab data differs significantly from field performance. A battery sitting on a shelf behaves differently than one powering a heavy load.

Usable capacity is primarily driven by the load current, operating temperature, and the Battery Management System (BMS) cutoff settings. High discharge rates increase internal resistance losses, while extreme temperatures and conservative BMS voltage limits prevent the battery from delivering its full rated energy.

It is frustrating to buy a 100Ah battery and only get 80Ah of work out of it. This discrepancy is usually not a manufacturing defect but a result of physics. Several external and internal factors dictate how much of the stored energy you can actually access.

The Impact of Discharge Rate (C-Rate)

The "C-rate⁷" describes how fast you are draining the battery relative to its capacity. A 1C rate means you empty the battery in one hour. Due to internal resistance (impedance), discharging a battery quickly generates heat and causes a voltage drop (voltage sag).

If your equipment draws a high current, the battery voltage might hit the "empty" cutoff threshold (e.g., 2.5V per cell) before all the chemical energy is used up. This is known as the Peukert effect⁸, although it is less pronounced in lithium batteries compared to lead-acid, it is still significant. A pack rated for 20Ah at 0.2C might only deliver 18Ah at 2C.

Temperature Sensitivity

Lithium batteries are like humans; they prefer moderate temperatures.

• Cold Weather: At low temperatures (below 0°C), the internal resistance of the electrolyte rises sharply. The chemical reactions slow down. You might only be able to access 60% to 80% of the capacity in freezing conditions.
• Hot Weather: Heat improves performance temporarily by lowering resistance, but it degrades the battery chemistry permanently over time, reducing total capacity (State of Health).

The Role of the BMS

The Battery Management System (BMS)⁹ is the brain of the pack. Its job is to protect the cells. Sometimes, the "missing" capacity is simply the BMS doing its job. If one cell group in a series is slightly weaker (lower capacity), the BMS will cut off the discharge for the entire pack as soon as that weak link hits the low-voltage limit. This ensures safety but reduces the total usable capacity of the pack.

Capacity Loss Scenarios

Understanding these factors allows you to oversize your battery bank appropriately. If you need 100Ah in a freezing environment, buying a 100Ah battery will result in failure. You likely need a 150Ah pack to compensate for the environmental loss.

How can I verify the accuracy of stated capacity values?

Our quality control team spends hours validating raw cells because datasheets often hide critical inconsistencies. We believe trust is good, but verification is essential for industrial applications.

Verifying capacity accuracy involves requesting detailed discharge curves rather than just a single data point. You should conduct independent cycle testing using a programmable electronic load to measure the actual energy delivered (Wh) under your specific load profile, ensuring it aligns with the supplier’s claims.

If a supplier gives you a single number, be skeptical. To truly verify capacity, you need to look at the data over time. The most reliable way to do this is through discharge testing that mimics your actual usage.

Requesting the Right Data

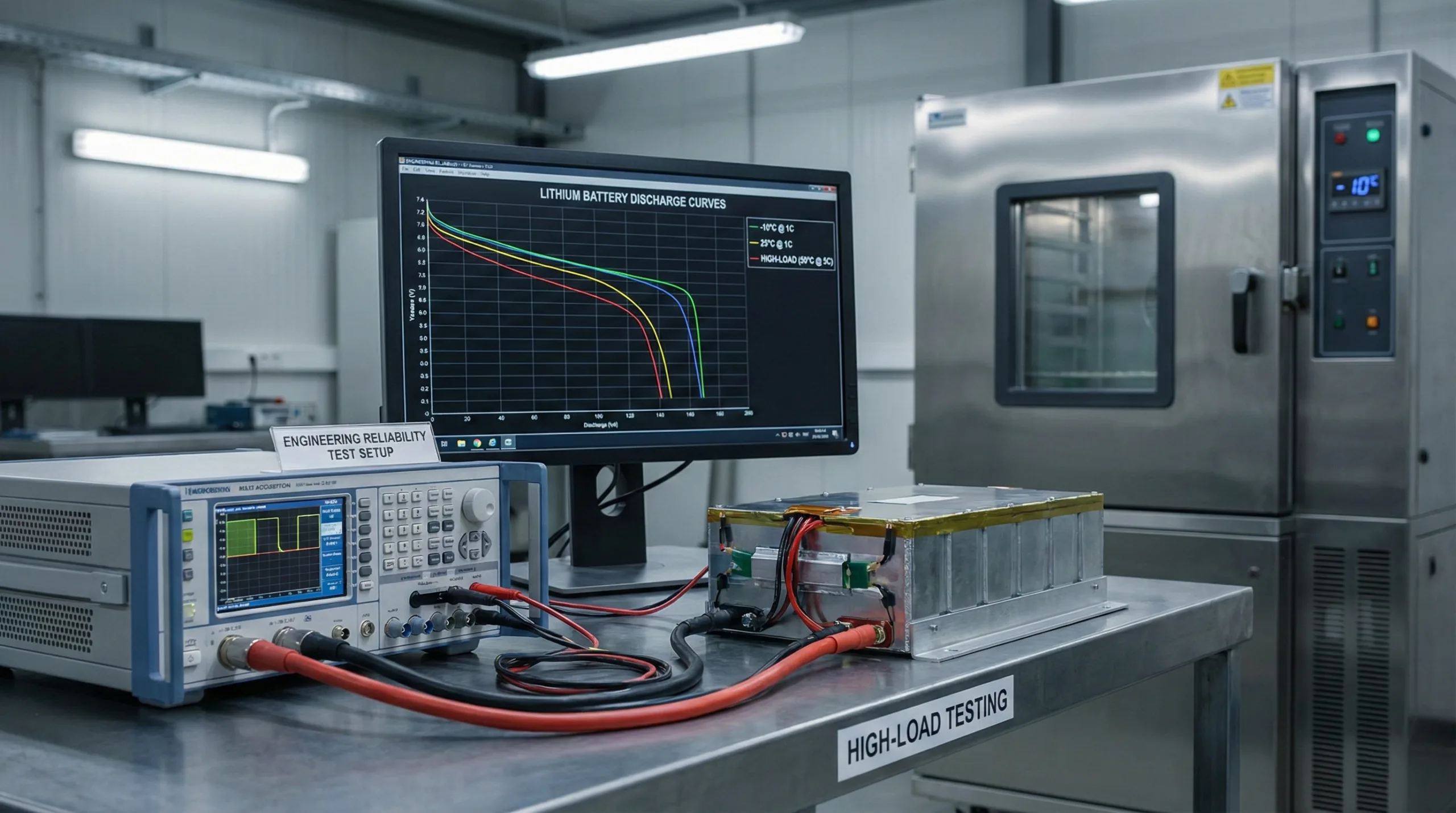

Before you even buy a sample, ask the manufacturer for a Discharge Curve. This graph shows Voltage vs. Capacity at different rates (e.g., 0.5C, 1C, 2C).

• Flat Curve: A good lithium battery (especially LFP) should maintain a relatively stable voltage for most of the discharge cycle.
• Steep Drop: If the voltage drops immediately upon load, the internal resistance is high, or the capacity is overrated.

Conducting Your Own Test

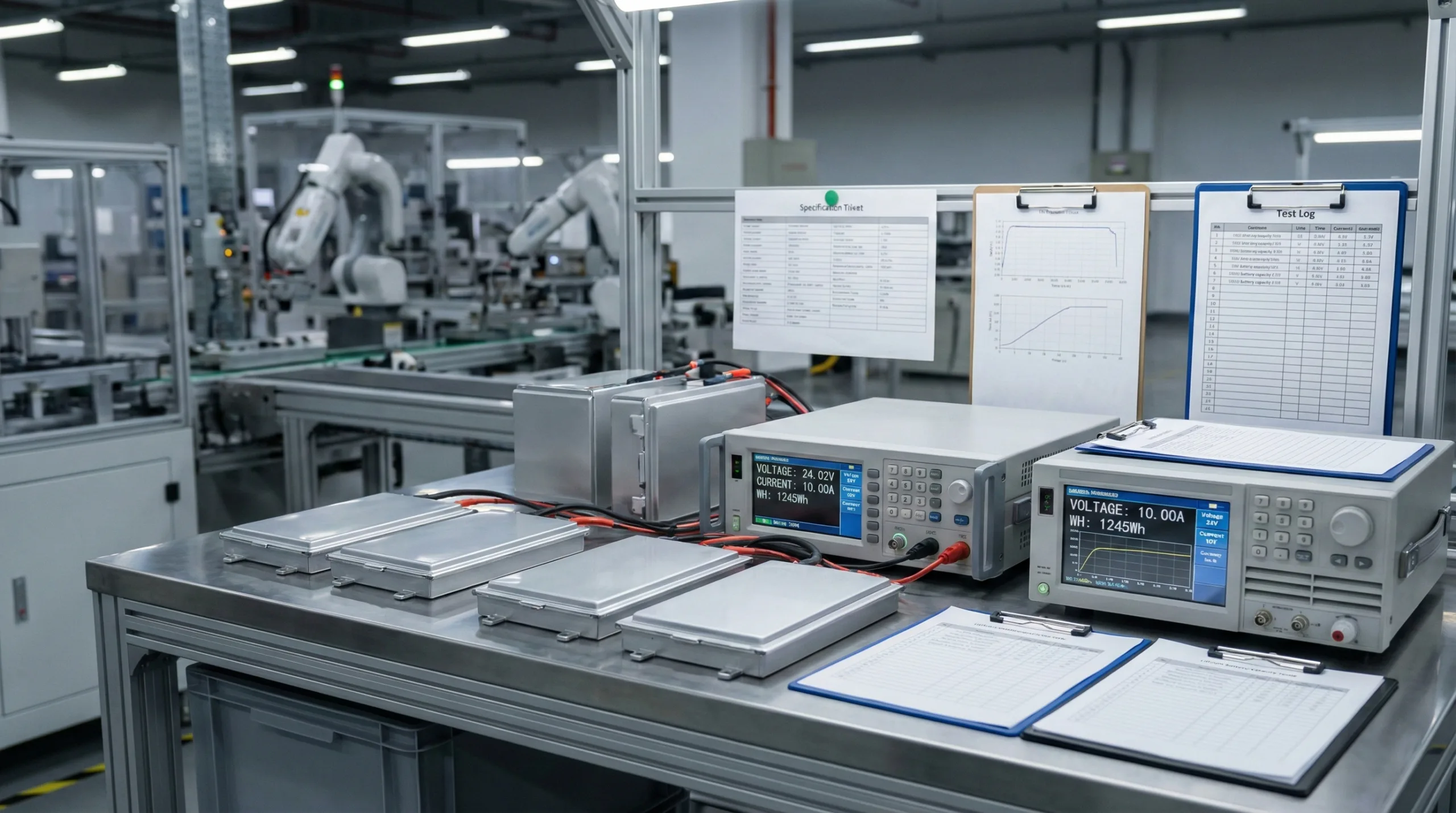

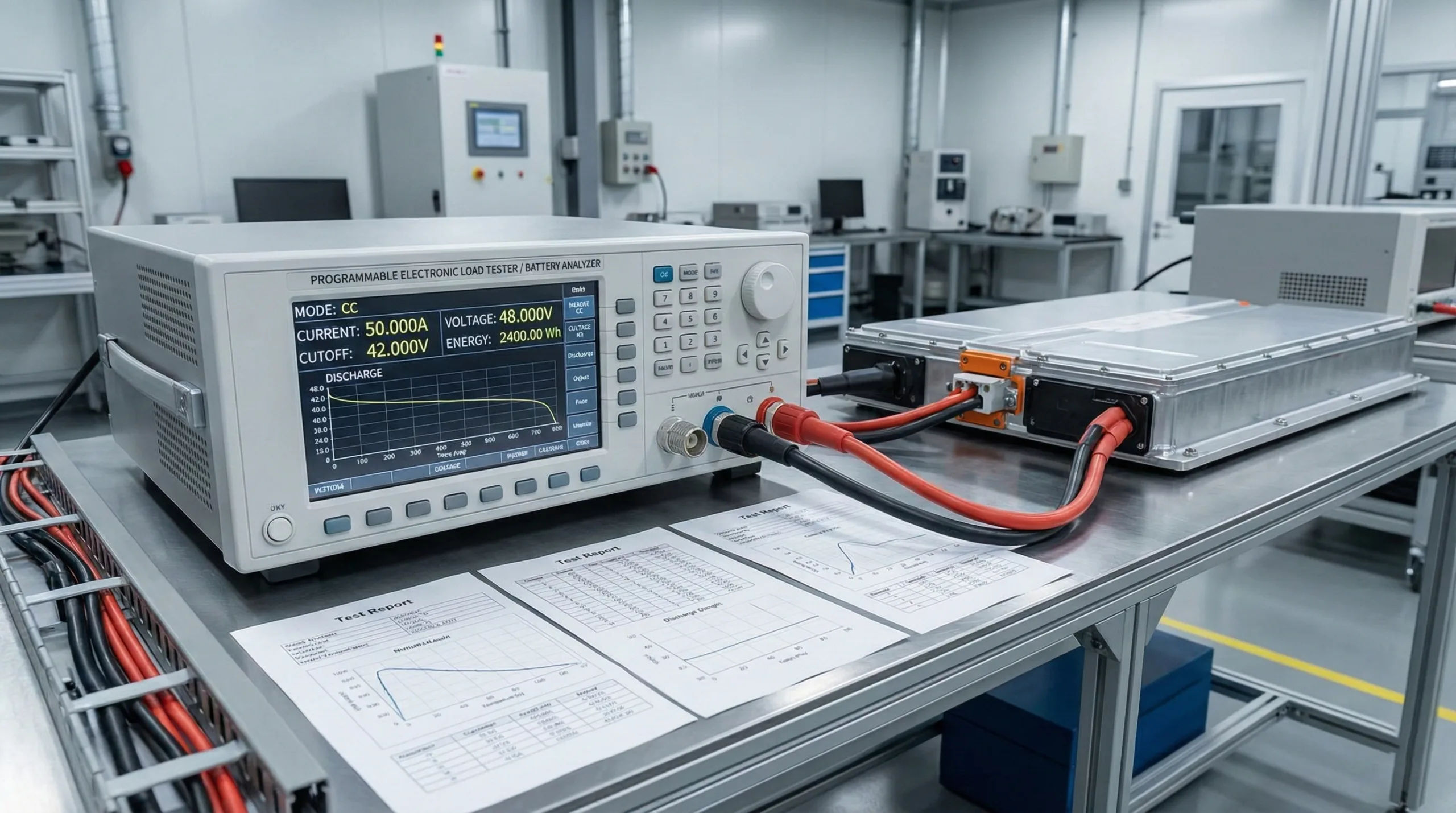

You do not need a million-dollar lab to do basic verification. A programmable electronic load¹⁰ (or a specialized battery tester) can discharge the battery at a constant current while recording the time and voltage.

Steps for a Valid Test:

1. Fully Charge: Charge the pack to its maximum voltage (e.g., 54.6V for a 48V NMC pack) and let it rest until the voltage stabilizes.
2. Set Parameters: Set your tester to discharge at a current similar to your device’s average load.
3. Set Cutoff: Define the cutoff voltage exactly as the manufacturer specifies (e.g., 39V). If you stop higher than they do, your numbers will be lower.
4. Record Wh: Look at the total Watt-hours delivered, not just Ampere-hours.

Coulomb Counting¹¹ vs. Voltage Estimation

When verifying capacity, do not rely on simple voltage charts (e.g., "48V = 50%"). These are notoriously inaccurate for Lithium Iron Phosphate (LFP) batteries because their discharge curve is very flat. You must use a method called Coulomb Counting¹¹, which physically measures the current flowing out over time. This is the only way to get a precision rating.

Verification Methods Comparison

At Junda, we perform 100% aging tests on our finished products. This means every single pack is charged and discharged to ensure it meets the rated capacity before it ships. We recommend you ask your supplier if they perform "spot checks" or "100% testing." The difference in reliability is massive.

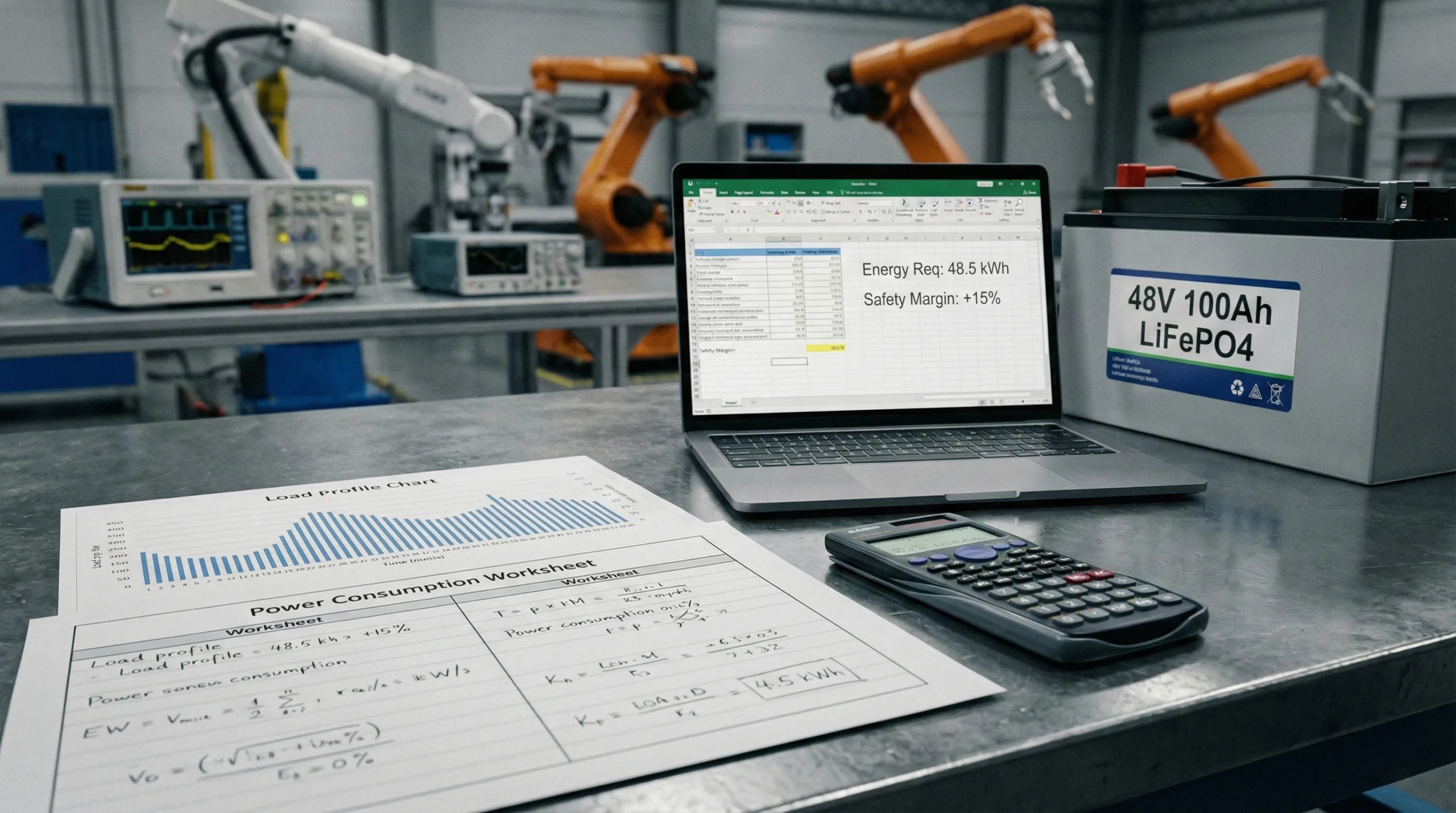

How do I match battery capacity to my equipment’s energy needs?

In our experience helping clients launch new electric vehicles, working backward from the application is the only safe strategy. Guessing capacity leads to dead batteries and angry end-users.

Matching capacity starts by defining your equipment’s peak power and continuous runtime requirements to calculate the total Watt-hours needed. You must then apply a safety margin of 20-30% to account for aging and environmental factors, ensuring the battery pack remains reliable throughout its intended service life.

Many buyers make the mistake of selecting a battery that fits the physical space first, and then hoping the capacity is sufficient. This is backward. You must define the energy profile¹² of your device first.

Step 1: Calculate Daily Energy Consumption

You need to know two numbers:

1. Average Power Draw (Watts): Not the peak power¹³, but the average over a working cycle.
2. Required Runtime (Hours): How long must it run before recharging?

$$ \text{Total Energy Needed (Wh)} = \text{Average Watts} \times \text{Hours} $$

For example, if an Automated Guided Vehicle (AGV) draws 500W on average and needs to run for 8 hours:
$$ 500W \times 8h = 4000Wh $$

Step 2: Apply the "Real World" Buffer

A 4000Wh battery will technically run that AGV for 8 hours, but only on day one, at 25°C, and if you drain it to 0%. In reality, you never want to drain a lithium battery to 0% because it hurts the cycle life.

We recommend a Depth of Discharge (DoD)¹⁴ of 80%. This means you only plan to use 80% of the battery’s capacity.
$$ \text{Required Capacity} = \frac{4000Wh}{0.80} = 5000Wh $$

Step 3: Factor in Aging

Batteries degrade. After 500 or 1000 cycles, a battery might only hold 80% of its original capacity. If you need the machine to run for 8 hours even after 3 years of use, you need to add another buffer.

$$ \text{Final Capacity} = \frac{5000Wh}{0.80 (\text{aging factor¹⁵})} = 6250Wh $$

Step 4: Convert Back to Ampere-hours

Now that you have a realistic energy target (6250Wh), divide by your system voltage to find the Ah rating you need to buy.
If your system is 48V:
$$ \frac{6250Wh}{48V} \approx 130Ah $$

So, for a 4000Wh load, you actually need a ~130Ah battery, not an ~83Ah battery (4000/48). This calculation prevents the common complaint of "the battery dies too fast" after just a year of use.

Peak Power Considerations

Finally, ensure the capacity you chose can handle the Peak Power. Smaller capacity batteries often have lower maximum current limits. If your equipment has a high startup current (inrush current), a small battery might shut down due to BMS protection, even if it has enough energy stored. You might need to buy a larger capacity battery just to get the current capability you need.

Conclusion

Comparing battery parameters requires a shift from reading labels to understanding energy dynamics. By calculating Watt-hours, verifying discharge curves¹⁶, and planning for aging, you ensure your product performs reliably. Contact Junda Battery today, and let our engineers help you design the perfect energy solution for your needs.
