| Model | Capacity | Energy (Wh) | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 16V 5Ah | 5Ah | 80Wh | 130×80×50 | ~0.9kg |
| 16V 10Ah | 10Ah | 160Wh | 150×90×70 | ~1.8kg |
| 16V 20Ah | 20Ah | 320Wh | 180×110×80 | ~3.6kg |
| 16V 50Ah | 50Ah | 800Wh | 230×140×160 | ~7.5kg |
Delivers over 5,000 charge cycles, far exceeding the lifespan of traditional batteries.

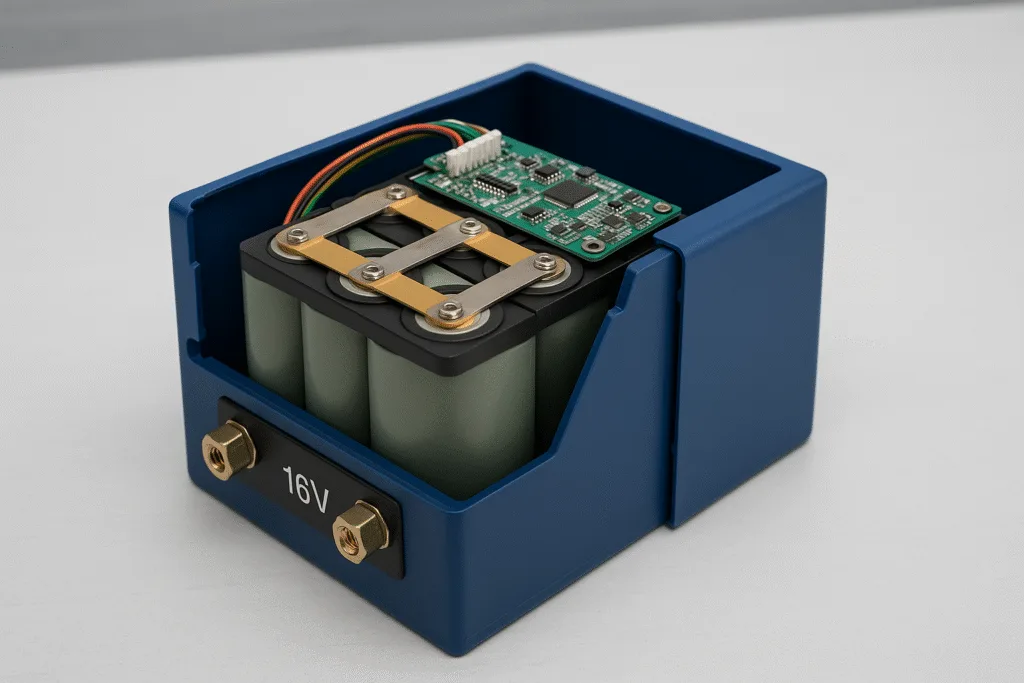

Junda manufactures custom 16V LiFePO₄ battery packs engineered for high performance, long service life, and advanced safety features. Designed to support robotics, ROVs, outdoor lighting, and industrial systems, our 16V lithium iron phosphate batteries deliver reliable power in demanding environments. OEM/ODM customization is fully supported.
The custom 16V LiFePO₄ battery pack is designed for applications requiring higher voltage and compact size, with superior safety, long cycle life, and high discharge performance. Whether for medical equipment, e-mobility, or backup power, explore its specifications, capacity options, and use cases below to find the ideal solution for your needs.
| Parameter | Specification |
|---|---|
| Battery Type | 16V LiFePO₄ Battery Pack (5S) |
| Nominal Voltage | 16V |
| Nominal Capacity | 5Ah / 10Ah / 20Ah / 50Ah / Custom |
| Energy | 80–800Wh (based on configuration) |
| Charge Voltage | 18.25V |
| Cut-off Voltage | 13.75V |
| Standard Discharge Current | 10A–100A |
| Peak Discharge Current | 30A–200A |
| Cycle Life | >2000 cycles @ 80% DOD |
| BMS | Built-in, with overcharge, overdischarge, and short-circuit protection |
| Communication | Optional: RS485 / CAN / Bluetooth |
| Enclosure | ABS / Metal / IP65 Waterproof / Custom |
| Certifications | UN38.3 / MSDS / CE / UL (upon request) |
| Model | Capacity | Energy (Wh) | Dimensions (mm) | Weight |
|---|---|---|---|---|
| 16V 5Ah | 5Ah | 80Wh | 130×80×50 | ~0.9kg |
| 16V 10Ah | 10Ah | 160Wh | 150×90×70 | ~1.8kg |
| 16V 20Ah | 20Ah | 320Wh | 180×110×80 | ~3.6kg |
| 16V 50Ah | 50Ah | 800Wh | 230×140×160 | ~7.5kg |
| Capacity Range | Typical Applications |
|---|---|
| 5–10Ah | Medical pumps, LED lighting, portable electronics |
| 20Ah | Industrial sensors, e-scooters, surveillance systems |
| 50Ah | Backup power, robotics, marine electronics |
| Custom | OEM solutions for smart devices and embedded systems |
5,000+ deep cycles at 80% DOD, offering years of stable operation with minimal capacity loss.
Compact 16V lithium design stores more power in less space, ideal for mobile and embedded systems.
Integrated Battery Management System protects against overcharge, short circuit, and thermal issues.
Up to 70% lighter than sealed lead-acid batteries, reducing system weight and transport costs.
Performs reliably from -20°C to 60°C, suitable for outdoor and rugged use.
RoHS-compliant, non-toxic, and recyclable lithium chemistry with no lead or acid.
Junda offers tailored 16V LiFePO4 battery packs designed for high safety, lightweight performance, and long cycle life. All models are engineered to meet B2B needs across robotics, portable power systems, industrial devices, and medical equipment. OEM/ODM support available.

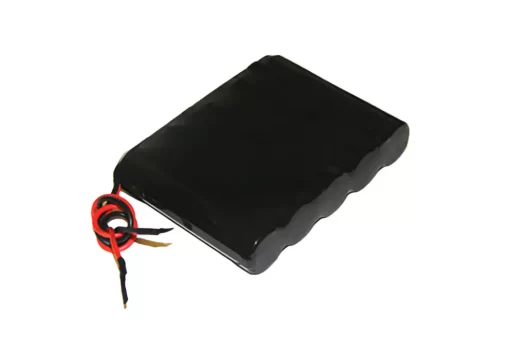

Key Specs:
Configuration: 5S1P with 18650 LFP cells
Rated Capacity: 1500mAh | Energy: 24Wh
Discharge Rate: 2A nominal
Cycle Life: 1,000+ cycles
Compact and lightweight
Typical Applications:
Portable meters, smart locks, IoT terminals, compact robotic modules.

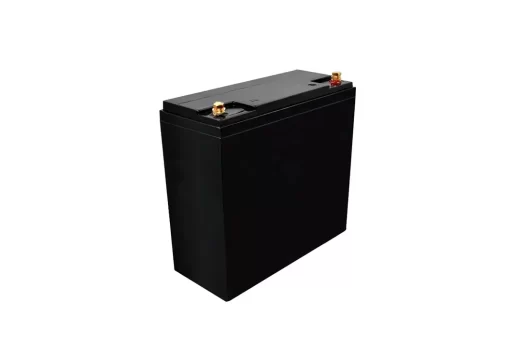

Key Specs:
Rated Capacity: 25Ah | Energy: 400Wh
Operating Temp: -20°C to 60°C
Cycle Life: 3,000+ deep cycles
Weight: ~3.3kg
Deep cycle performance and BMS protected
Typical Applications:
AGVs, mobile energy carts, marine tools, industrial robots.

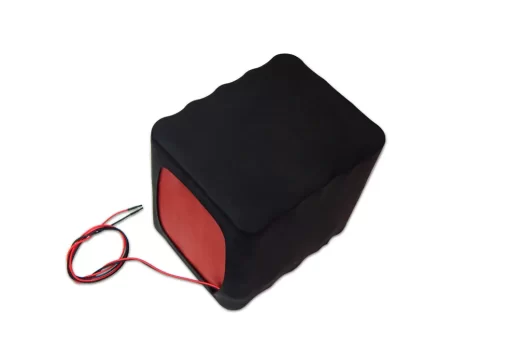

Key Specs:
Configuration: 5S8P using 40x 32700 LiFePO₄ cells
Capacity: 48Ah | Energy: 768Wh
Discharge Current: 7A
Cycle Life: 1,000+ cycles
Supports series/parallel expansion
Typical Applications:
Electric surfboards, medical trolleys, solar-powered base stations, communication devices.

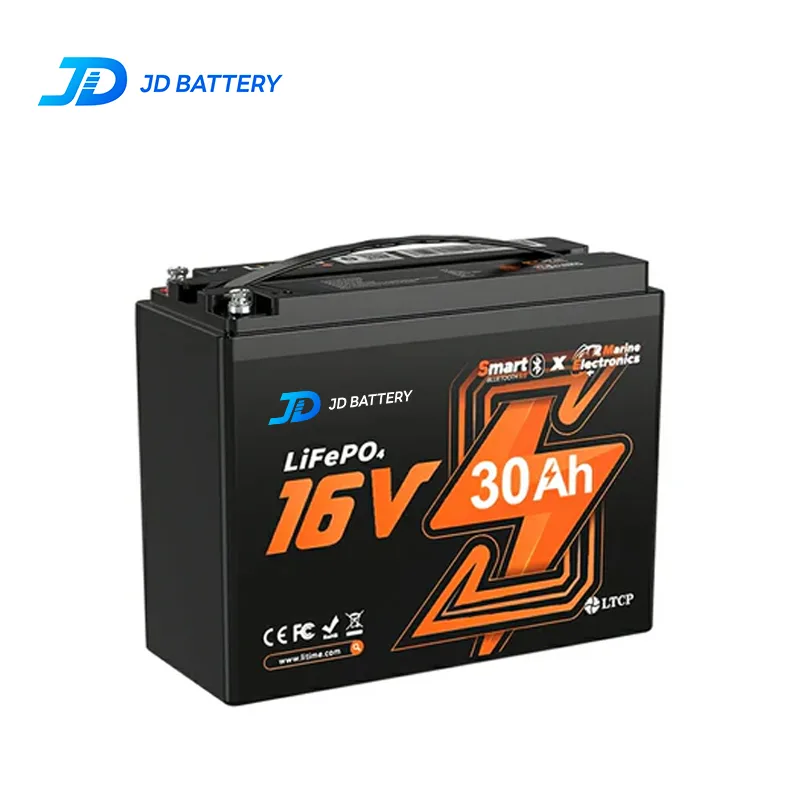

The 16V 30Ah lithium iron phosphate battery offers a reliable energy source for mobile devices, robotics, and field monitoring. Built with Grade A LiFePO₄ cells, this battery delivers stable output and long cycle life in a lightweight form.
Key Features:
Voltage: 16V | Capacity: 30Ah | Energy: 480Wh
Cell Configuration: 5S with prismatic or cylindrical cells
Weight: ~4.5–5.5kg (customizable)
Cycle Life: 3,000–5,000 cycles at 80% DOD
Integrated BMS for short-circuit, overcharge, over-discharge protection
Optional IP65/IP67 waterproof casing and CAN/RS485 communication
Typical Applications:
Mid-size AGVs, portable solar systems, LED lighting towers, off-grid IoT units

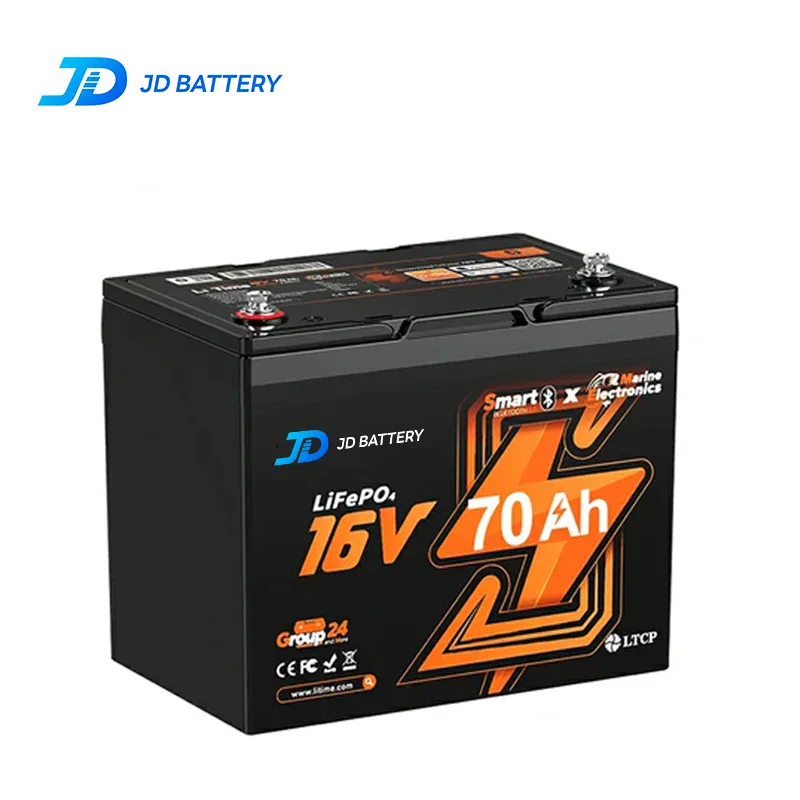

The 16V 70Ah LiFePO₄ battery is designed for systems that require high current output, consistent power delivery, and rugged build quality. It’s a great solution for backup systems, robotics, and marine electronics.
Key Features:
Voltage: 16V | Capacity: 70Ah | Energy: 1.12kWh
Cell Configuration: 5S with high-current LiFePO₄ cells
Continuous Discharge: 70A | Peak Discharge: 120A
Cycle Life: 4,000+ cycles @ 80% DOD
Smart BMS with optional Bluetooth/RS485
Aluminum alloy or steel casing for impact resistance
Typical Applications:
ROVs, industrial backup UPS, compact energy storage, DC power equipment

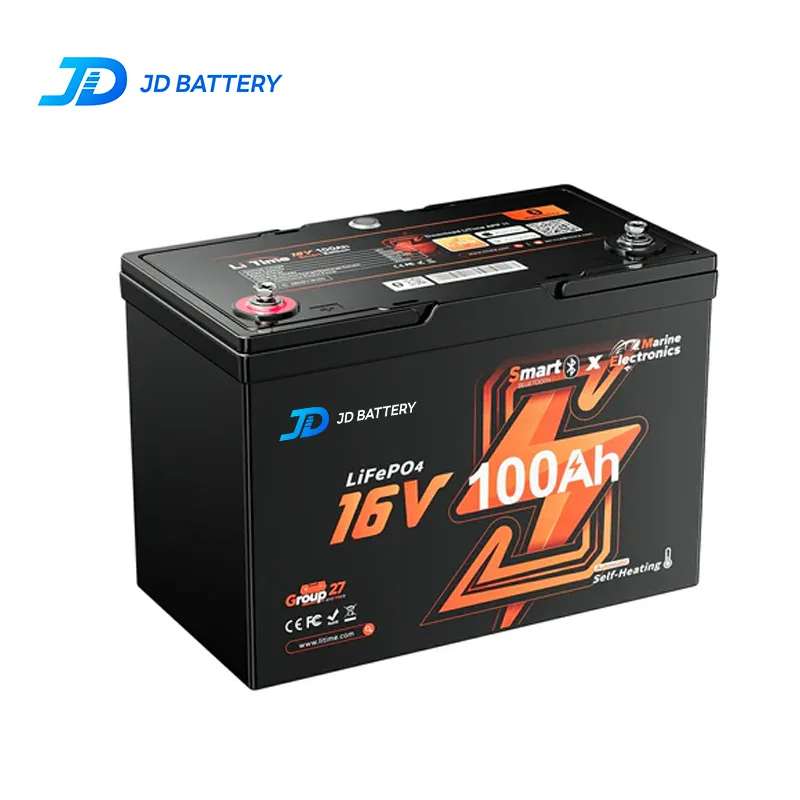

The 16V 100Ah LiFePO₄ battery delivers 1.6kWh of usable energy with exceptional safety and cycle stability. Ideal for long runtime systems in solar, telecom, and backup power environments.
Key Features:
Voltage: 16V | Capacity: 100Ah | Energy: 1.6kWh
Built with A-grade prismatic cells, 5S configuration
Cycle Life: 4,000–6,000 cycles
Continuous Output: 100A | Peak: 150A
Smart BMS supports CANBus, RS485, or LCD display
Optional: rack-mount, waterproof casing, series/parallel connection
Typical Applications:
Telecom base stations, solar inverters, emergency energy storage, mobile towers
You gain higher safety, longer cycle life (2000–5000+), faster charging, and lower lifetime cost. LiFePO₄ is also more stable in extreme temperatures and carries no toxic heavy metals.
Your voltage depends on your device’s motor or inverter requirements. For example, 12.8V is ideal for RV and lighting systems, 51.2V for solar storage or telecom, and 409.6V for large energy storage systems and EVs.
Yes, each pack can be customized to work with your inverter or EMS system using CAN, RS485, or UART protocols. Our engineering team ensures BMS compatibility during the design phase.
Most packs are compliant with UN38.3, CE, RoHS, and optionally UL 1642 / 2054 and IEC 62133, depending on your market and application.
With proper use, you can expect 2000–5000+ charge/discharge cycles, depending on depth of discharge and usage conditions.
Yes, custom configurations can be built for series or parallel use. Modular designs are available to support system scalability.
Yes. Waterproof enclosures (IP65–IP67) and self-heating modules for -30°C operation are available upon request.
Absolutely. Packs can be tailored with specific dimensions, terminal types, communication ports, and mounting solutions to meet your hardware needs.
Samples typically take 7–10 working days. Mass production requires 15–25 working days after sample approval, depending on complexity.
Yes. All packs that require international shipping come with UN38.3 test reports, MSDS, and compliant packaging for air, sea, or ground transport.
With more than a decade of experience, Junda delivers precision-engineered lithium battery packs tailored for your unique applications. Here’s what makes us a trusted partner for global B2B clients:
At Junda, our engineering team is led by a senior battery architect with 15+ years of hands-on experience at CATL, BYD, and other industry leaders. Backed by a cross-functional team of 6 engineers, we provide full-cycle development from design and simulation to testing and certification. We’ve completed over 1,000 custom battery pack projects across sectors like eMobility, energy storage, medical devices, and industrial tools—always focusing on safety, reliability, and performance.
Junda operates under a strict ISO 9001:2015-certified quality management system, overseen by our QA director and implemented across every department. From incoming cell inspection to final pack aging tests, every step is digitally tracked and traceable. Our system ensures stable supply chain sourcing, controlled assembly processes, and compliance with industry benchmarks such as UN38.3, CE, and IEC 62133.
Junda’s battery pack assembly process integrates mechanical, electrical, and thermal design tailored to your use case. Our capabilities include IP67/IP68 waterproof housing, high-discharge BMS systems, CAN/RS485 communication protocols, and reinforced designs for vibration or extreme environments. We conduct cell sorting, welding, insulation, balancing, and aging tests in-house to ensure consistent performance and longevity.
From your first inquiry to final delivery, we provide responsive, multilingual support backed by a dedicated sales and engineering team. We guide clients through technical evaluation, prototyping, compliance, and logistics—ensuring a transparent, stress-free experience. Whether you need an urgent sample or a long-term OEM solution, we’re here to make your battery development process efficient and reliable.
Share your voltage, size, application, and quantity needs—we’ll assess your project quickly.
Our engineers will optimize the design, confirm details, and provide samples if needed.
Once approved, we start production and arrange fast, secure shipping to your destination.
Need a custom lithium battery pack? Just send us your specs—we’ll help you choose the right voltage, case, and configuration for your application.
At JUNDA, we make customization easy. Follow these 3 simple steps to start today:
Send your battery requirements — voltage, capacity, casing type, or upload drawings/photos.
We’ll evaluate your specs and recommend the best configuration. A detailed quote will be sent within 24 hours.
After approval and deposit, we start production. Shipping and tracking will be arranged for fast, secure delivery.
